Key Specifications/Special Features:
Brand Name:FANXI
Model Number:router bits
Material:Carbide, TCT router bits
Type:End Mill
Coating:without
Sample:Acceptable
Controlling Mode:CNC tooling system
Flute Number:2F
Chemical Position:WC+Co
Grade:YG8X
Commodity Name:straight router bits

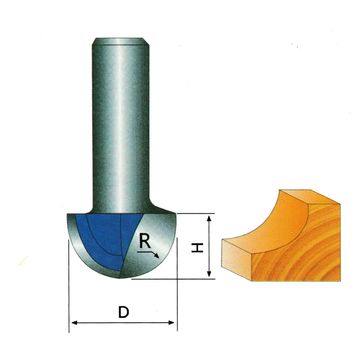

| Size(inch) | D(mm) | R(mm0 | H(mm） |
| 1/4*3/8 | 3.17 | 5.0 | 1.58 |
| 1/4*3/16 | 4.76 | 7.0 | 2.38 |
| 1/4*1/4 | 6.35 | 6.35 | 3.17 |
| 1/4*5/16 | 7.96 | 6.5 | 3.96 |
| 1/4*3/8 | 9.52 | 7.5 | 4.76 |
| 1/4*1/2 | 12.7 | 9.4 | 6.35 |
| 1/4*5/8 | 15.9 | 10 | 7.95 |
| 1/4*3/4 | 19.05 | 12 | 9.52 |
| 1/4*7/8 | 22.2 | 13.5 | 11.1 |
| 1/4*1 | 25.4 | 15.0 | 12.7 |
| 1/2*3/16 | 4.76 | 7.0 | 2.38 |
| 1/2*1/4 | 6.35 | 6.35 | 3.17 |
| 1/2*5/16 | 7.96 | 6.5 | 3.96 |
| 1/2*3/8 | 9.52 | 7.5 | 4.76 |
| 1/2*1/2 | 12.7 | 9.4 | 6.35 |
| 1/2*5/8 | 15.9 | 10 | 7.95 |
| 1/2*3/4 | 19.05 | 12 | 9.52 |
| 1/2*7/8 | 22.2 | 13.5 | 11.1 |
| 1/2*1 | 25.4 | 15.0 | 12.7 |
| 1/2*1-1/8 | 28.6 | 17.5 | 14.3 |
| 1/2*1-1/4 | 31.75 | 19 | 15.9 |
| 1/2*1-3/8 | 34.9 | 19.5 | 17.45 |
| 1/2*1-1/2 | 38.1 | 22.5 | 19.05 |
| 1/2*1-5/8 | 41.28 | 24.2 | 20.64 |
| 1/2*1-3/4 | 44.45 | 26.5 | 22.2 |
| 1/2*1-7/8 | 47.63 | 27.5 | 23.81 |
| 1/2*2 | 50.8 | 28.5 | 25.4 |
| 1/2*2-1/3 | 63.5 | 35 | 31.75 |
| 1/2*3 | 76.2 | 41.5 | 38.1 |
