Spécifications clés/caractéristiques spéciales :
matériau : acier au carbone
emballage : tube en plastique ou selon vos besoins
couleur : bleu, jaune ou rouge

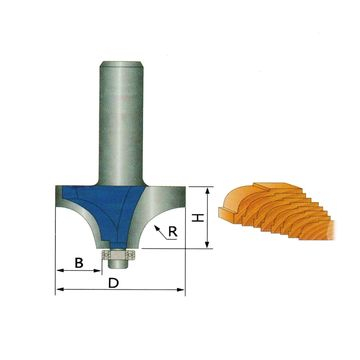

| Taille (mm) |
D(mm) |
R(mm) |
B(mm) |
Hmm) |
| 1/4*1/8 |
15.9 |
1.58 |
3.45 |
12.7 |
| 1/4*3/16 |
17.46 |
2.38 |
4.23 |
12.7 |
| 1/4*1/4 |
19.05 |
3.17 |
5.02 |
12.7 |
| 1/4*5/16 |
20.62 |
3.96 |
5.81 |
12.7 |
| 1/4*3/8 |
22.22 |
4.76 |
6.61 |
12.7 |
| 1/4*1/2 |
25.4 |
6.35 |
8.2 |
12.7 |
| 1/4*5/8 |
28.6 |
7.96 |
9.8 |
12.7 |
| 1/4*3/4 |
31.7 |
9.52 |
11.35 |
15.9 |
| 1/4*7/8 |
34.9 |
11.1 |
12.9 |
17 |
| 1/4*1 |
38.1 |
12.7 |
14.5 |
19.05 |
| 1/2*1/4 |
19.05 |
3.17 |
5.02 |
12.7 |
| 1/2*5/16 |
20.62 |
3.96 |
5.81 |
12.7 |
| 1/2*3/8 |
22.22 |
4.76 |
6.61 |
12.7 |
| 1/2-1/2 |
25.4 |
6.35 |
8.2 |
12.7 |
| 1/2*5/8 |
28.6 |
7.96 |
9.8 |
12.7 |
| 1/2*3/4 |
31.7 |
9.52 |
11.35 |
15.9 |
| 1/2*7/8 |
34.9 |
11.1 |
12.9 |
17 |
| 1/2*1 |
38.1 |
12.7 |
14.5 |
19.05 |
| 1/2*1-1/8 |
41.3 |
14.3 |
16.15 |
19.3 |
| 1/2*1-1/4 |
44.45 |
15.9 |
17.72 |
22.2 |
| 1/2*1-3/8 |
47.6 |
17.45 |
19.3 |
23.85 |
| 1/2*1-1/2 |
50.8 |
19.05 |
20.9 |
25.4 |
| 1/2*1-5/8 |
53.96 |
20.63 |
22.48 |
27.13 |
| 1/2*1-3/4 |
57.15 |
22.2 |
24.07 |
28.5 |
| 1/2*1-7/8 |
60.32 |
23.81 |
25.66 |
30.31 |
| 1/2*2 |
63.5 |
25.4 |
27.25 |
32 |
| 1/2*2-1/8 |
66.66 |
26.98 |
28.83 |
33.48 |
| 1/2*2-1/4 |
69.84 |
28.57 |
30.42 |
35.07 |
| 1/2*2-3/8 |
73.02 |
30.16 |
32.01 |
36.66 |
| 1/2*2-1/2 |
76.2 |
31.75 |
33.6 |
38.25 |
| 1/2*2-5/8 |
79.37 |
33.33 |
35.18 |
39.83 |
| 1/2*2-3/4 |
82.55 |
34.92 |
36.77 |
41.42 |
| 1/2-*2-7/8 |
85.72 |
36.51 |
38.36 |
43.01 |
| 1/2*3 |
88.9 |
38.1 |
39.95 |
45.1 |
